Boiler Steam System slide blowdown valve

Send Inquiry

Request To Call Back

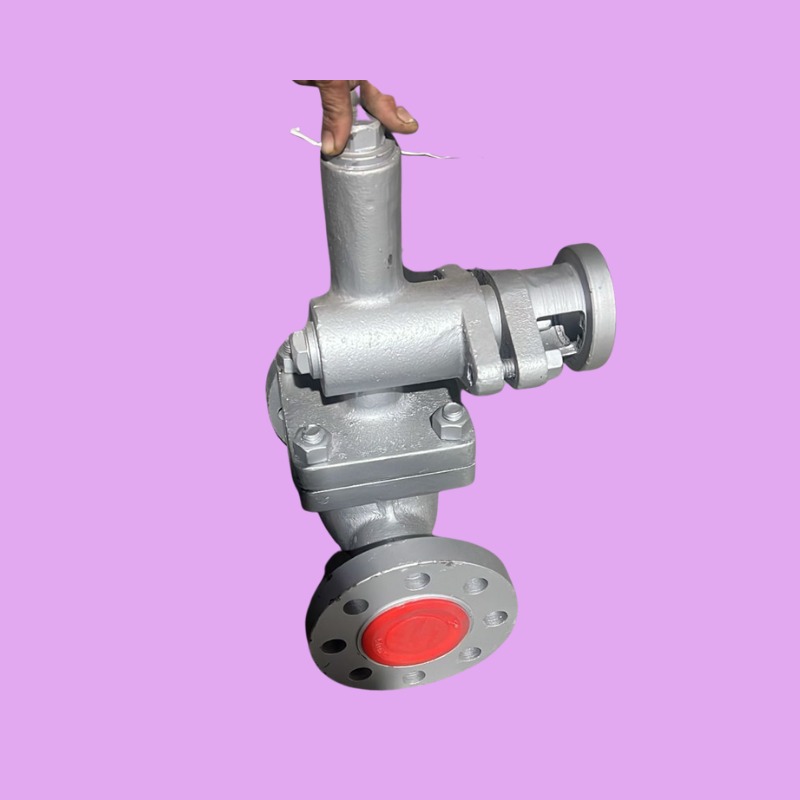

Boiler Steam System slide blowdown valve

Name: Boiler Steam System slide blowdown valve
Brand: A M SMART EXIM
Price: 30220.0 INR
Availability: InStock

Price 30220.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Kilograms

Boiler Steam System slide blowdown valve Specification

Usage
Indisrial

Material
Cast Steel

Technique
Casting

Connection
Flanged

Shape
Y-Pattern

Height
3 Centimeter (cm)

Head Code
Round

Weight
5 Kilograms (kg)

Type
Blowdown Valve

Port Size
25 mm to 100 mm (customizable)

Color
Silver

Style
Slide

Pressure
PN25 / Class 150-300

Application
Boiler Steam System

Media
Steam, Water, Hot Liquids

Maintenance
Low Maintenance

Test Standard
API 598

Actuation
Optional Pneumatic/Electric On Request

Weight
Varies with size (approx. 7-22 kg)

Operating Temperature
Up to 425C

Body Coating
Anti-corrosive paint/primer

End Connection Standard
ASME/ANSI B16.5

Operation
Manual Handwheel

Flow Direction
Uni-directional

Bonnet Type
Bolted Bonnet

Sealing
Metal To Metal Seat

Boiler Steam System slide blowdown valve Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
20 Days

About Boiler Steam System slide blowdown valve

Carbon Steel Cast Blow Off Valves:

Basic Details:

A blow off valve is used to safely release excess pressure from a system, preventing damage to equipment and maintaining stable

operation. It opens when pressure rises beyond a set level, allowing steam, air, gas, or fluid to discharge quickly and keep the system balanced.Common Applications Blow off valves are widely used in boilers, pipelines, industrial plants, steam systems, compressors, and pressure vessels. They help remove built up pressure, discharge sediment in boiler lines, protect pumps and pipes, and maintain efficient system performance.

Product	Blow Off Valves
applicable medium	Water, Gas
media	Other
port size	custom
structure	Blow Off
temperature of media	Normal Temperature
model number	Blow Off Valves
brand name	AM Smart Exim
place of origin	India
State	Gujarat
application	Other
customized support	OEM
warranty	3 years
Material	Carbon Steel

Reliable Performance for High-Temperature Applications

Engineered for up to 425C operation, this slide blowdown valve meets the rigorous demands of modern boiler steam systems. The robust construction and anti-corrosive coating ensure long-lasting reliability even when handling steam, water, or other hot liquids, supporting both industrial safety and efficiency.

Versatile Design with Easy Operation

Designed with user convenience in mind, the manual handwheel allows precise flow control. If automated operation is preferred, pneumatic or electric actuators are available upon request. The Y-pattern body and bolted bonnet enhance durability, while the low-maintenance design minimizes downtime for busy industrial environments.

FAQ's of Boiler Steam System slide blowdown valve:

Q: How is the slide blowdown valve operated in a boiler steam system?

A: The valve is typically operated manually using a handwheel, allowing precise control over flow. For automation, optional pneumatic or electric actuation can be installed as requested.

Q: What makes this blowdown valve suitable for high-temperature applications?

A: Made from cast steel with a metal-to-metal seat and anti-corrosive coating, the valve can withstand operating temperatures up to 425C, ensuring longevity and safety in demanding boiler steam systems.

Q: When should a blowdown valve be used in boiler maintenance?

A: A blowdown valve should be employed during routine maintenance to remove accumulated impurities or excess water from the boiler system, protecting equipment and optimizing performance.

Q: Where can the slide blowdown valve be installed?

A: This valve is designed for integration into industrial boiler steam systems and can be installed at locations requiring controlled blowdown, benefiting from its flanged ASME/ANSI B16.5 compatible connections.

Q: What are the benefits of the metal-to-metal seat design?

A: The metal-to-metal seat provides enhanced durability and leak resistance, making the valve reliable for high-pressure and high-temperature operations, while minimizing maintenance needs.

Q: How does the anti-corrosive coating improve valve performance?

A: The anti-corrosive paint or primer protects the valve body from rust and chemical degradation, significantly extending the valve's service life and maintaining operational reliability in harsh industrial environments.
