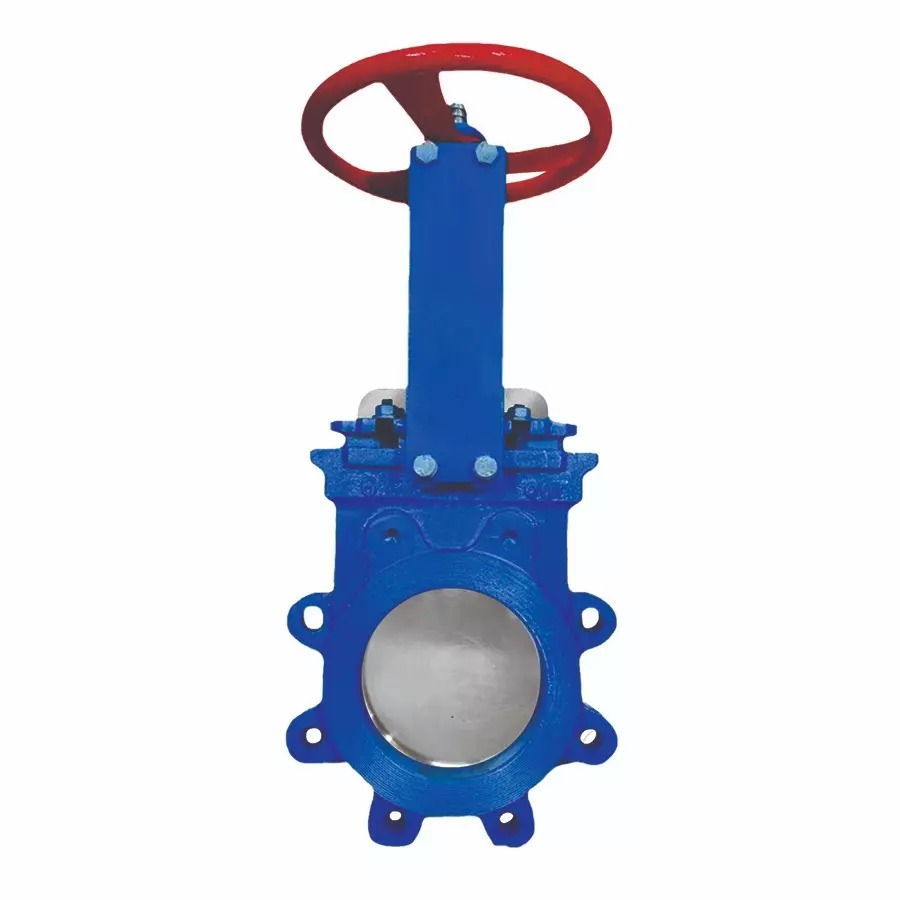

SAPCO 100 SS304 Disc Wedge Resilient Seat Knife Gate Valve Wafer

Name: SAPCO 100 SS304 Disc Wedge Resilient Seat Knife Gate Valve Wafer
Brand: A M SMART EXIM
Price: 20300.0 INR
Availability: InStock

Price 20300.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SAPCO 100 SS304 Disc Wedge Resilient Seat Knife Gate Valve Wafer Specification

Connection
Wafer type, Flanged Ends Option

Diameter
DN50 to DN600

Structure
Knife Gate, Single Piece Wafer

Pressure
10 bar to 16 bar (standard rating)

Channels
1 Flow Channel

Caliber
Standard

Usage
Indusrial

Material
SS304 Disc, Ductile Iron/Carbon Steel Body

Power
Manual, Pneumatic, or Electric Actuator Option

Media
Water, Slurry, Pulp, Petrochemical, Oil, Gas

Temperature of Media
-10C to 120C (dependent on seat material and application)

Port Size
50mm to 600mm (2 to 24)

Weight
5 Kilograms (kg)

Flange
EN 1092, ANSI B16.5, PN10/PN16 compatible

Color
Silver

Finish
Epoxy Powder Coated, Shot Blasted

Application
Industrial

Leakage Class
Class A (Tight Shut-Off)

Sealing
EPDM/NBR/PTFE Resilient Seat

Gland Packing
PTFE or Graphite

Face to Face Standard
MSS-SP-81

Design Pressure
Up to 16 bar

Mounting
ISO 5211 Top Flange

Weight
Varies by Size (E.g., DN100 12kg)

Testing Standard
EN 12266-1

End Connection
Wafer Type, Lugged Optional

Body Material
Ductile Iron (Standard), Stainless Steel 304/316 Optional

Disc Type
Wedge Resilient Seat (Rising/Non-Rising Stem Option)

Operation
Handwheel, Gearbox, Pneumatic Cylinder, Electric Motor, Lever

Bonnet Type
Without Bonnet (Standard), Optional Bonneted Design

Corrosion Protection
Epoxy Coating, Custom Paint Option

About SAPCO 100 SS304 Disc Wedge Resilient Seat Knife Gate Valve Wafer

Product	Cast Iron Knife Edge Gate Valve
applicable medium	Water, Gas
material	Stainless Steel304
Type of Seat	Renewable Seat
Type of Disc	SS304
Testing Standard	API 598
model number	SS Gate Valves
brand name	AM Smart Exim
place of origin	India
State	Gujarat
application	Other
customized support	OEM
Test Pressure	Body: 16 bar (Hydrostatic)Seat: 11.5 bar (Hydrostatic)
Size	As demand
End Details	Wafer type, suitable for installation between Class 150 flanges

Robust Construction for Demanding Environments

Engineered with a durable SS304 disc and standard ductile iron body, this valve provides reliable operation across a broad range of industrial settings. Its single-piece wafer structure and epoxy powder-coated finish ensure performance longevity, even under harsh conditions or aggressive media.

Versatile Operation and Configuration

Operators benefit from flexible actuation choices, including manual, pneumatic, and electric. The valve offers both rising and non-rising stem designs, with optional bonneted and lugged types, accommodating diverse installation and maintenance requirements.

Superior Sealing and Industry Compliance

The SAPCO 100 Knife Gate Valve delivers Class A tight shut-off, suitable for high-integrity process control. It meets EN 12266-1 testing standards and is compatible with leading flange standards, including EN 1092, ANSI B16.5, and PN10/PN16, making it ideal for international projects.

FAQ's of SAPCO 100 SS304 Disc Wedge Resilient Seat Knife Gate Valve Wafer:

Q: How is the SAPCO 100 SS304 Disc Knife Gate Valve typically operated?

A: This valve can be operated manually (via handwheel or lever), with a gearbox, or automatically through pneumatic cylinders or electric motors. The operation method can be selected based on specific site requirements and automation level.

Q: What media and applications is this knife gate valve suitable for?

A: The valve is designed for versatile usage in industries handling water, slurry, pulp, petrochemical products, oil, and gas. Its resilient seat and robust construction make it ideal for handling abrasive and corrosive media.

Q: When should a rising stem versus non-rising stem be chosen?

A: A rising stem is preferable for visual position indication and is often used when space above the valve allows. Non-rising stems are ideal where vertical space is limited, as the stem remains stationary during valve operation.

Q: Where can this valve be installed, given its connection standards?

A: The SAPCO 100 Knife Gate Valve is compatible with wafer-type and optional lugged/flanged end connections, suiting pipelines following EN 1092, ANSI B16.5, or PN10/PN16 standards. This makes it suitable for global industrial facilities.

Q: What is the process for selecting the appropriate sealing material?

A: Sealing material selection depends on the media and operating temperature. EPDM suits water; NBR is ideal for oil-based media; PTFE is used for chemically aggressive or high-temperature applications. Consulting application specifics ensures optimal performance.

Q: How does the valve ensure low leakage and high integrity?

A: The SAPCO 100 is designed for Class A (tight shut-off) leakage performance and is tested according to EN 12266-1 standards. The resilient seat options and precise wedge design minimize leakage and ensure reliable flow isolation.
